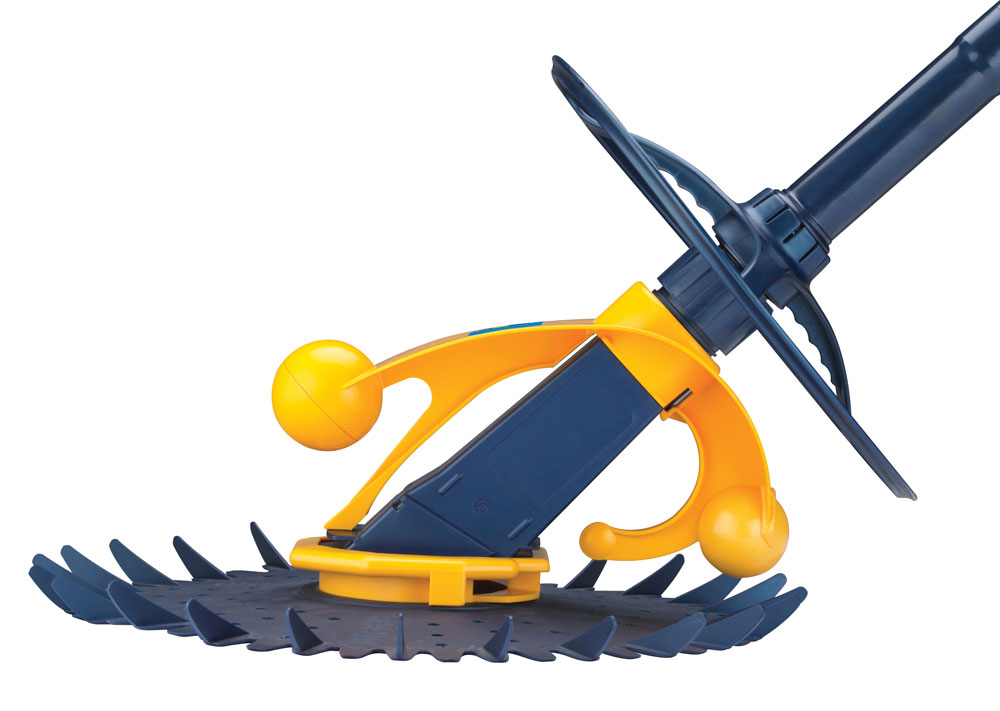

Zodiac G2

The Zodiac "G" series delivers efficient and effective cleaning performance of pool floor, walls and steps. Zodiac G2 utilizes the durable AIB diaphragm and a 24 fin disc.

Find a Dealer

The G2 delivers maximum cleaning capability with low speed pumps.

The Zodiac G2 pool cleaner delivers efficient, effective cleaning performance that is compatible with low speed pumps for maximum efficiency. The cleaner quickly inhales small and medium debris while thoroughly cleaning pool floor, walls and steps. The G2 cleaner includes a FlowKeeper™ Valve. This compact self-adjusting flow control valve automatically regulates water flow, ensuring peak performance even with low-speed pumps.

In just three simple steps, the G2 cleaner will be ready to clean your pool. They come preassembled in the box. Simply attach the disc, wheel deflector, and hose, and connect to the skimmer or dedicated suction line. No tools or special plumbing required.

Features

  • Durable AIB Diaphragm - Simple and reliable one moving part technology.
  • Finned Disc - 24-fin disc allows cleaner to move freely over lights, fittings and ladders.
  • Wheel Deflector - Enables enhanced agility and thorough pool coverage.

Technical Information

  • Suction-side cleaner
  • Operates in all in-ground pools
  • Connects directly to skimmer or 1.5" dedicated vacuum line
  • Includes 36 ft. of feed hose
Feature Description
Pool Type In-Ground
Cleaner Type Suction-side
Connection Skimmer or 1.5" Vacuum Line
Warranty 1 Year
Hose Type Long-Life, 36 ft. of Feed Hose
Diaphragm Durable AIB
Pool Surface(s) Tile, Vinyl, Gunite, and Fiberglass

Models

Model Description
W70472 Zodiac G2

Accessories

Model Description
W24100 Zodiac Universal Return Line Div , 2/PK Fluidra
W24209 Zodiac Baracuda Hose Deflector White, 3/PK Fluidra
W26705 Zodiac Baracuda Leaf Catcher Fluidra
W44000 Zodiac Seal, Leaf Eater Fluidra
W44700 Zodiac Top, Leaf Eater Fluidra
W43905 Zodiac Basket, Leaf Eater, White Fluidra
W55105 Zodiac Leaf eater Handle Fluidra
W46155 Zodiac Wheel Deflector, 16" Turquoise Fluidra
W69742 Zodiac Wheel Adapter Ranger Fluidra
W90153 Zodiac 90 EYEBALL DIVERTER 1-1/2" Fluidra
W90155 Zodiac 90 EYEBALL DIVERTER - 2" Fluidra

Frequently Asked Questions

Click a frequently asked question below to see the answer.

Could I break the pool cleaner if I disassemble it to check the diaphragm?
No, the unit is easy to disassemble. There are a few threaded components to remove by hand.
Is there an adapter that connects the hoses to the pool cleaner? The hoses do not fit.
No adapter is required, the hoses will fit onto the OEP with a little push.
My Cleaner climbs walls excessively?
1. Using Flow Gauge as guide, reduce flow to the cleaner. 2. Verify correct hose weight position. Try moving hose weight further away from cleaner head. Note: If the cleaner is moving extremely fast or climbing the pool walls that is an indication that the flow is too high and the Flowkeeper setting must be reduced. To adjust the flow, pull the adjustment handle on the Flowkeeper Valve to raise or lower the flow rate.
My Cleaner flips over?
1. Use Flow Gauge or Pool Pulse to insure proper flow. 2. Using Flow Gauge as guide, increase or decrease flow on FlowKeeper valve. 3. Check swivel on cleaner. Swivel should rotate freely. 4. Contact service technician
My Cleaner won't leave the edge or rim of the pool?
1. Using Flow Gauge or Pool Pulse as guide, reduce flow to cleaner. 2. Utilize return flow to move cleaner. 3. Confirm that the hose weight position on the hose is correct. Adjust if needed.
My Suction Cleaner Stops and Starts?
1. Check if any debris is stuck in the diaphragm hose, skimmer basket and the hair and lint pot in the filtration pump. 2. Use Pool Pulse or Flow Gauge (supplied with suction cleaner) to determine the proper flow. 3. Using the Pool Pulse or Flow Gauge, make the necessary Flowkeeper valve setting changes. 4. Check hoses for leaks and splits. 5. Ensure the pump is on high speed.
My Cleaner isn't covering the opposite end of the Pool?
1. Add return diverters or divert return inlets downward. Use return flow to move cleaner. 2. Confirm proper hose length - add 1 to 2 hose sections. 3. Verify correct hose weight position. Note: The hose weight is positioned to compensate for the buoyancy of the hose. A properly balanced hose will create a 45-degree angle to the cleaner and the bottom of the pool.
My Pool Cleaner seems to be moving backwards, is that normal?
All suction pool cleaners with diaphragms move backwards. The diaphragm pulsates moving the cleaner backwards to the hose assembly.
My Suction Cleaner is patterning?
1. Direct return inlets down. Add a return diverter if necessary. 2. Lay hose in a straight line in the sun for a few hours to relax the memory. 3. Confirm proper hose length - add 1 to 2 hose sections. 4. If hose weight required, verify correct position. Note: A properly balanced hose will create a 45-degree angle to the cleaner and the bottom of the pool.
Why do I have to take out the diaphragm on a new pool cleaner?
To reset the diaphragm to its correct length and assist with start up problems.
