Zodiac MX6™ Elite

Compact and Powerful with Active Scrubbing

The MX6 Elite combines a compact size with powerful cyclonic suction and aggressive scrubbing action to deliver comprehensive cleaning of your pool floor, walls and waterline.

Find a Dealer

The MX6 Elite thoroughly cleans and scrubs all your pool’s surfaces.

The MX6 Elite brings superior scrubbing action and best-in-class vacuum power to a compact suction cleaner. Combining Cyclonic Scrubbing Brushes that spin and scrub fine and stuck-on debris with impressive wall-climbing ability and programmed navigation, the MX6 Elite provides comprehensive cleaning of your pool floor, walls and waterline. An innovative low-flow design consumes less energy, making the MX6 Elite the ideal cleaner for smaller pools with 2-speed or variable speed pumps.

Features

  • Cyclonic Suction - Powerful suction and aggressive wall-climbing.

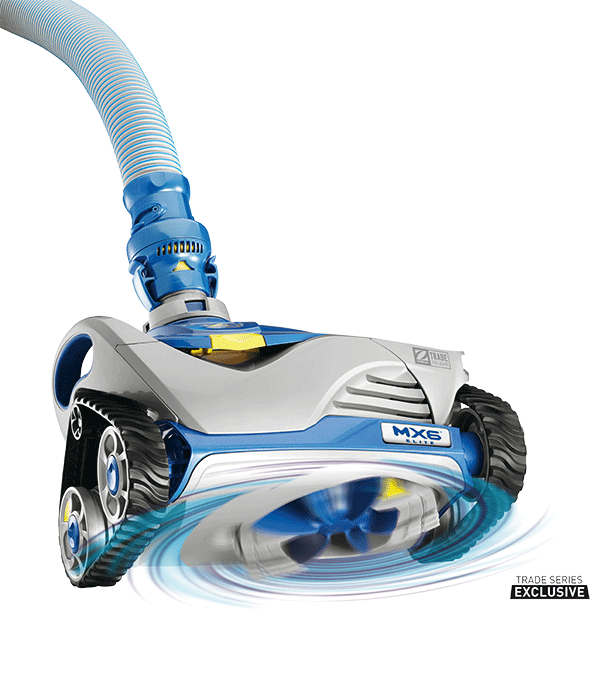

  • Active Scrubbing - Cyclonic Scrubbing Brushes deep clean pool’s surfaces.
  • Comprehensive Coverage - X-Drive Navigation ensures complete pool coverage from floor to waterline.
  • Optimized Flow Control - Flow Regulator Valve automatically controls excess flow for optimal performance and longevity.
  • Energy Efficient - Articulating turbine blades provide ultra-efficient operation, even on low-flow pumps.

Specifications

Feature Description
Pool Type Inground & Aboveground
Cleaner Type Mechanical Suction Cleaner
Connection Skimmer or 1.5" Dedicated Vacuum / Suction Vacuum Line
Warranty 1 Year
Hose Type Advanced Twist Lock Hose
Traction X-Drive Technology with X-Trax
Pool Surface(s) Concrete, Tile, Vinyl and Fiberglass

Models

Model Description
MX6EL Zodiac MX6 Elite Inground Cleaner

Exploded Parts Diagram

Zodiac MX6 Elite Parts List

Learn More

Accessories

Model Description
CLC500 Zodiac Cyclonic Leaf Catcher
R0714400 Zodiac Cyclonic Scrubbing Brush, 4/PK Fluidra

Frequently Asked Questions

Click a frequently asked question below to see the answer.

Cleaner does not move or moves slowly
1. Use flow gauge to verify proper flow of 3. 2. Open top hood and check for engine blockage. 3. Check underside of cleaner for blockage around the inlet. 4. Verify that the Direct Control Devices are operational and going through all cycles. 5. Check for air in system. If water in pump basket drops or you see air bubbles in the pump basket, there is air entering the system. Check hose for leaks, check hose connections, tighten all fittings and lid o-ring at the pump.
Cleaner patterns or does not cover entire pool.
1. Use flow gauge to verify a proper flow of 3. 2. Ensure return fittings are directed downward. Add a return diverter if necessary. 3. Ensure hose is not kinked or coiled. Lay the hose in the sun to straighten if necessary. 4. Verify correct hose float positioning. 5. Observe cleaner for more than 5 minutes and ensure that each drive track is periodically reversing direction. If it is not, contact your local dealer or service company for assistance. 6. Confirm proper hose length.
Cleaner gets stuck at stairs.
1. Obeserve cleaner for at least 5 minutes and ensure that each drive track is periodically reversing direction. If it is not, contact your dealer or service center for help. 2. Ensure the swivel on top of the cleaner rotates freely. 3. Use flow gauge to verify flow is set to 3. 4. Confirm proper hose length. Shorten if necessary.
Cleaner won't climb walls.
1. Using the flow gauge as a guide, increase flow to cleaner. 2. Verify correct hose float positioning. 3. Walls may be covered with algae (especially tile and fiberglass pools). Correct water chemistry and brush walls.
Cleaner riding on its side
1. Verify hose float is positioned approximately 9" from cleaner.

Resources

MX6 Elite Brochure

Item #: SL3876
File Size: 6516783
Description: SL3876 MX6EL Sell Sheet (EN)

Download View Online

MX6, MX6 Elite, MX8, MX8 Elite Quick Start Guide (EN, ESP, FR)

Item #: H0539900
File Size: 11313385
Description: MX6, MX6 Elite, MX8, MX8 Elite Quick Start Guide (EN, ESP, FR)

Download View Online

MX6, MX6 Elite, MX8, MX8 Elite Owner's Manual (ENG/ESP/FR)

Item #: H0539800
File Size: 19922330
Description: MX6, MX6 Elite, MX8, MX8 Elite Owner's Manual (ENG/ESP/FR)

Download View Online

MX6 Elite Sell Sheet French

Item #: 3876CF_SL
File Size: 586368

Download View Online
