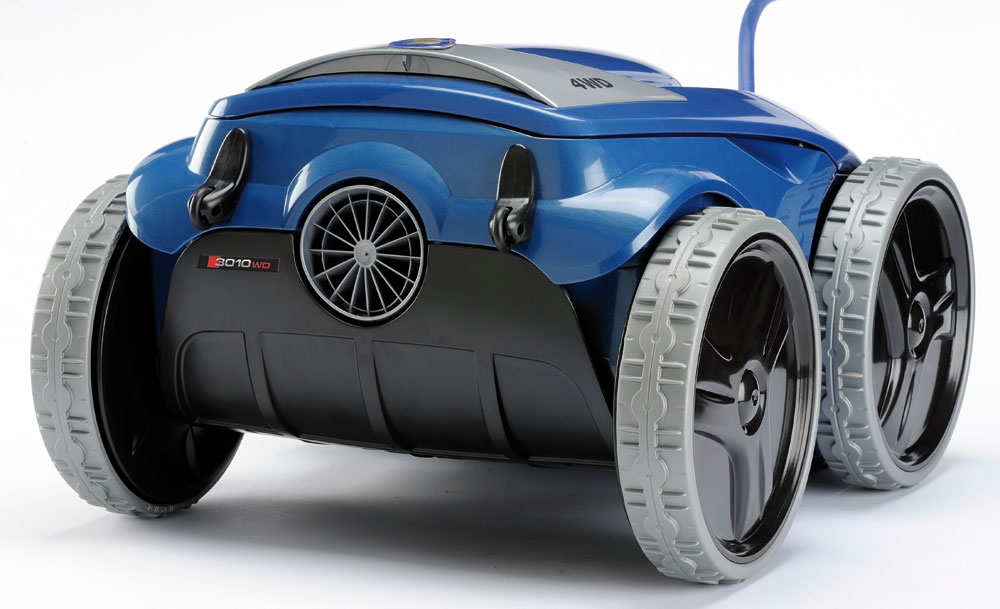

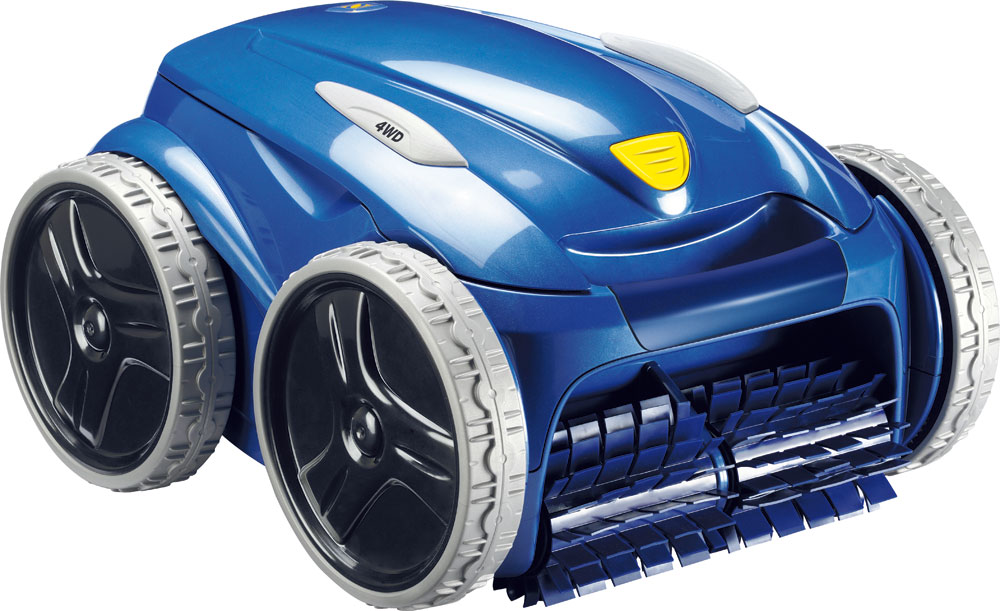

Zodiac 3010WD

Energy Efficient Zodiac 3010WD Can Reduce Energy Consumption

4WD with innovative features, including the Easy Lift System, 7-day programmable timer, and Vortex Vacuum technology.

Find a Dealer

4WD with innovative features, including the Easy Lift System, 7-day programmable timer, and Vortex Vacuum technology.

The energy efficient Zodiac 3010WD can reduce energy consumption and significantly lower operating costs. It features a rear water cleaning stream which blows debris off stairs and out of tight corners. Its over-sized suction intake allows it to ingest larger debris effortlessly. With durable Aqua-Trac tires and Vortex Vacuum Technology, the 3010WD tackles any pool terrain and climbs over obstacles without getting stuck. It cleans all pool surface types and scrubs the floor, steps, walls, and tile line with a pleated scrubbing brush in as little as 1.5 hours.

The 3010WD cleans pools up to 50' (15m) in length. It includes a new premium, compact transport caddy that can be assembled in just minutes without using any tools. Model is backed by a 2 year limited warranty.

Features:

  • Easy Lift System - One touch drives cleaner to surface. Water automatically evacuates for easy removal.
  • Easy Clean Filter Canister - debris can easily be emptied with a simple shake and spray convenience.
  • 7-day programmable Timer - Fully customizable set it & forget it cleaning modes.
  • 4-Wheel Drive Technology - Climbs over any obstacle & won't get stuck.
  • Premium, Compact Transport Caddy - Assembles in minutes without tools and easy to roll.

Specifications

Feature Description
Easy Lift System
Yes
Easy Clean Filter Canister
Yes
Vortex Vacuum Technology
Yes
ActivMotion Sensor®
Yes
Remote Control No
Cleaning Cycle
7-Day Programmable
Cleaning Modes
Floor, Floor/Wall
Dirty Canister Indicator
No
Drive
4WD
Rear Water Cleaning Stream
Yes
Brush Solid-Blade
Cable Length 60' Cable / 50' Pool
Premium Caddy Yes

Models

Model Description
WR000005 Zodiac 3010WD 4-wheel drive Robotic Cleaner

Exploded Parts Diagram

Automatic Pool Cleaners

Zodiac 3010WD Parts List

Launch our online catalog viewer to review breakout diagrams and part numbers.

Learn More

Frequently Asked Questions

Click a frequently asked question below to see the answer.

Cable is tangling in the pool.
1. Do not unravel the entire cable length. Place only the required length of cable in the water and place the rest on the side of the pool. Follow the procedure in Cord Tangling section of the owner's manual to avoid and correct tangled cord.
On startup the cleaner does not move.
1. The outlet, the control unit is connected to, is not supplying electrical power. Check that the outlet to which the control unit is connected is receiving electricity. 2. Check that you have started one (1) of the two (2) programs and check that the indicator for the selected program is lit. If the indicator light is not lit, turn the wheels then disconnect the control unit and wait at least 20 seconds before reconnecting. If the problem persists, contact Zodiac Technical Support at 1-800-822-7933.
The cleaner does not stay firmly on the pool bottom.
1. Submerge the cleaner following the procedure in Submerging the Cleaner section of the owner's manual. 2. Clean the filter canister, see Cleaning the Filter Canister section of the owner's manual.
The cleaner is not cleaning effectively.
1. Replace the brushes following the procedure in Replacing the Brushes section of the owner's manual. 2. Clean the filter canister following the procedure in Cleaning the Filter Canister section of the owner's manual. 3. Make sure the floating cable is spread out over the pool. Ensure the cable is not too tightly wrapped or coiled when storing. If the problem persists, lay the cable straight in the sun to relax it and remove kinks.
The cleaner does not or no longer climbs the pool sides.
1. Clean the filter canister, see Cleaning the Filter Canister section of the owner's manual. 2. Do a shock chlorination treatment and slightly reduce the pH. DO NOT leave the cleaner in the pool during this treatment.
The flashing indicator lights (3000 WD) or error code on the display (3010 WD and 3510 WD) appear just after start (either pressing Power or Cycle button for less than 20 seconds).
1. Unplug floating cable from the control unit and reconnect. 2. Remove cleaner from the pool and re-submerge. 3. Press power button OFF, then Cycle I or Cycle II to begin a new cycle. 4. Contact Zodiac Technical Support at 1-800-822-7933.
The flashing lights appear during the cleaning cycle.
1. Remove cleaner from the pool and re-submerge, see Submerging the Cleaner section of the owner's manual.

Resources

Zodiac Robotic Pool Cleaners Brochure

Item #: SL4513
File Size: 7414022
Description: CANADA ONLY

Download View Online

3000WD, 3010WD & 3510WD Owner's Manual

Item #: H0401700
File Size: 15204730
Description: CANADA ONLY. Languages/Langues: EN/FR

Download View Online
